WINEGLOBE
To let your grapes express their potential with precision, we suggest using glass as the material for aging containers. All in transparency, glass is an obvious choice for making wines without artifice or masks.
Wineglobe 25 litres
Wineglobe 60 litres
Wineglobe 115 litres
Wineglobe 220 litres
Wineglobe 400 litres
Do you have any questions about how Wineglobe works?
All the answers are here!
Would you like to order Wineglobe vats ?
Don’t forget to book them!

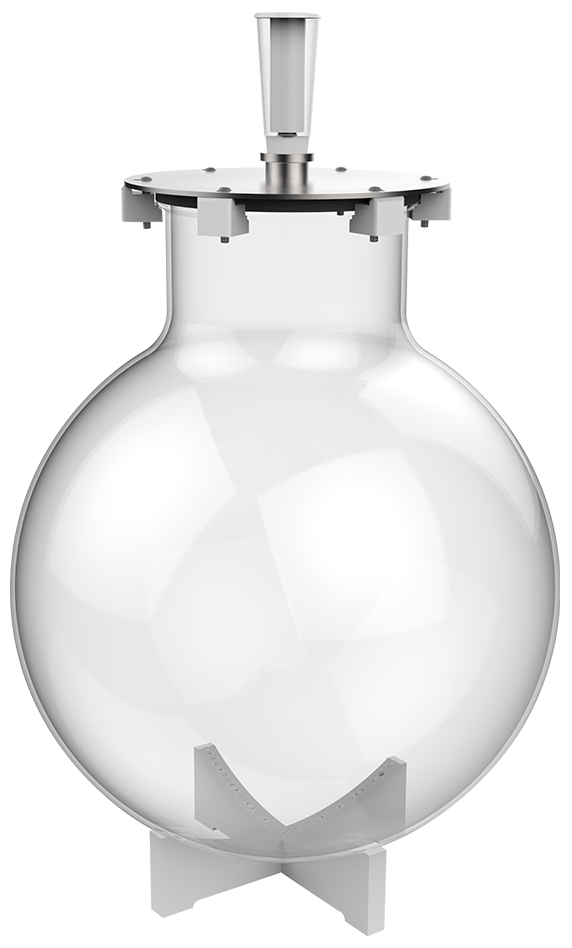

WINEGLOBE 220 litres
The globe
- Volume : 220 litres at the brim
- Height : 920 mm
-
Diameter : 750 mm
- Neck’s width : 300 mm
-
Thickness : 7 mm
- Net weight : 33.8 kg
-
Maximum operating pressure allowance is 0.1bar
-
The globe is resistant to thermal shock (heating and rapid cooling) up to 90°C
The Lid
Designed for filling to the brim (like barrels).
- Stainless steel, brushed finish, slightly curved shape,
6mm thick - Closing with food-grade Teflon (white or black) or
with untreated wooden brackets - 1 FKM 67 XM 15 – BNIC & FDA seal
- Silicone bung with ø18 hole + bubbler
WINEGLOBE 115 litres
The globe
- Volume : 115 litres at the brim
- Height : 745 mm
- Diameter : 610 mm
- Neck’s width : 200 mm
-
Thickness : 7 mm
-
Net weight : 20.5 kg
- Maximum operating pressure allowance is 0.1bar
-
The globe is resistant to thermal shock (heating and rapid cooling) up to 90°C
The Lid
Designed for filling to the brim (like barrels).
- Stainless steel, brushed finish, slightly curved shape,
6mm thick - Closing with food-grade Teflon (white or black) or
with untreated wooden brackets - 1 – BNIC & FDA toric seal
- Silicone bung with ø18 hole + bubbler
WINEGLOBE 60 litres
The globe
-
Volume : 60 litres at the brim
- Height : 635 mm
- Diameter : 490 mm
-
Neck’s width : 200 mm
- Thickness : 7 mm
-
Net weight : 13 kg
-
Maximum operating pressure allowance is 0.1bar
-
The globe is resistant to thermal shock (heating and rapid cooling) up to 90°C
The Lid
Designed for filling to the brim (like barrels).
- Stainless steel, brushed finish, slightly curved shape,
6mm thick - Closing with food-grade Teflon (white or black) or with untreated wooden brackets
- 1 – BNIC & FDA toric seal
- Silicone bung with ø18 hole + bubbler
WINEGLOBE 25 litres
The Globe
- Volume : 25 litres
- Height : 485 mm
- Diameter : 350 mm
- Neck’s width : 100 mm
- Thickness : 6 mm
- Net weight : 5,8 kg
- Maximum operating pressure allowance is 0.1bar
-
The globe is resistant to thermal shock (heating and rapid cooling) up to 90°C
The Lid
Designed for filling to the brim (like barrels).
- Silicone bung with ø18 hole + bubbler

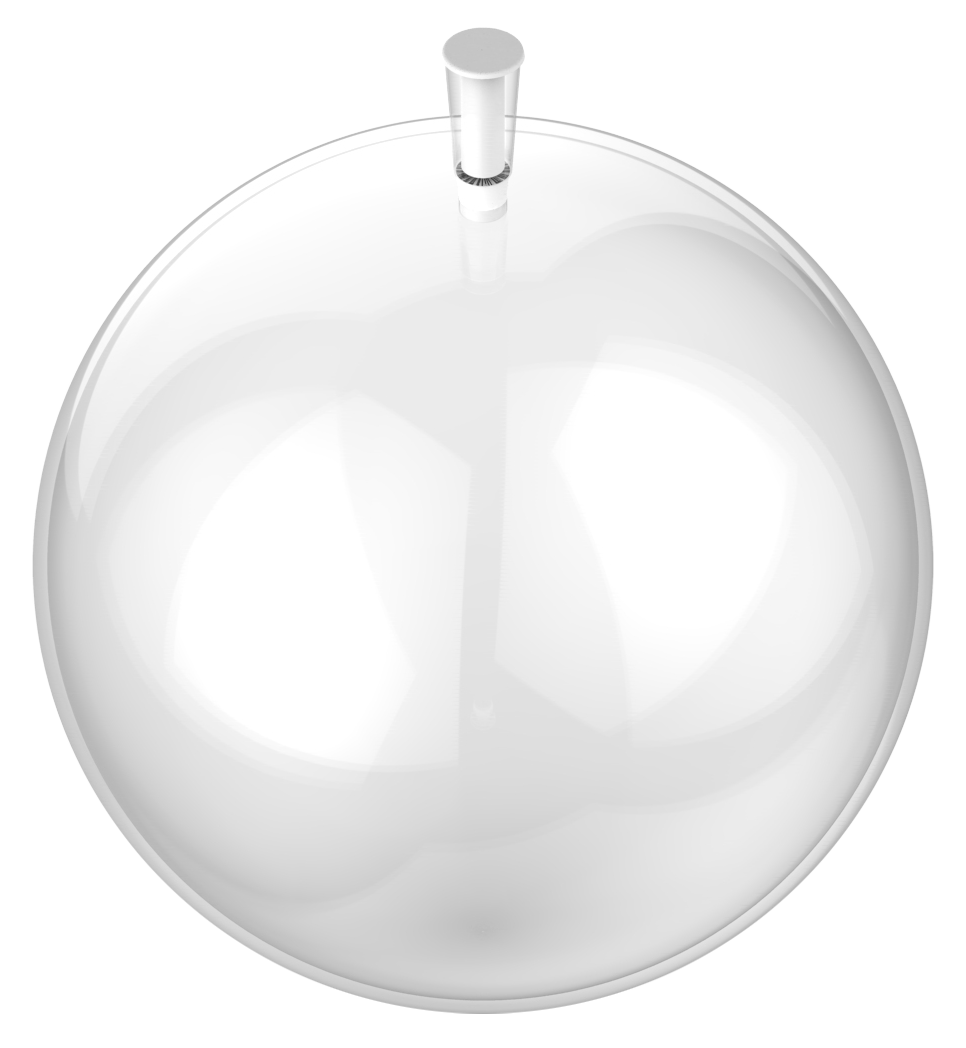

WINEGLOBE 400 litres
The globe
- Volume : 400 litres
- Diameter : 930 mm
- Opening of the tank : 120 mm
- Opening of the exit : 60 mm
- Average thickness : 15 mm
- Empty weight : 80 kg
- Maximum operating pressure allowance is 0.1bar
- The globe is resistant to thermal shock (heating and rapid cooling) up to 90°C
The Lid
Designed for filling to the brim (like barrels).
- Silicone bung Ø120 mm
- Plastic bubbler
